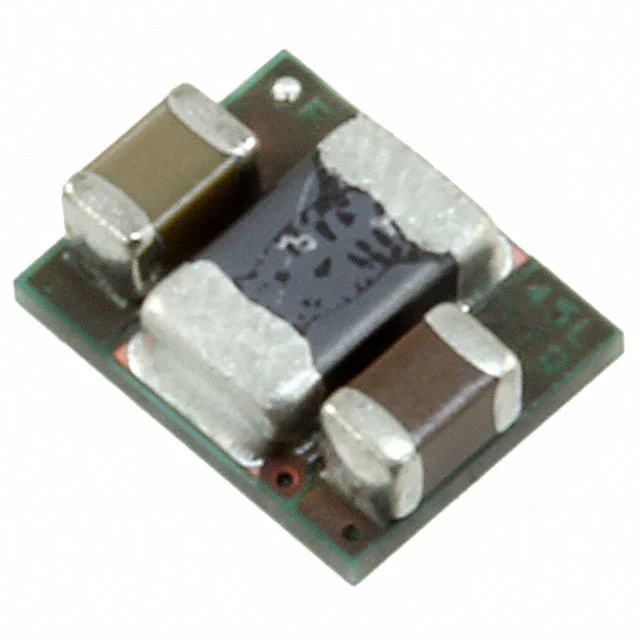

TPS82740ASIPR

Documents & Media
Documents & Media
Datasheets TPS82740(A,B) Datasheet
Design Resources TPS82740A Design with WEBENCH® Power Designer
Featured Product Power Management
Reference Design Library TPS82740AEVM-617: 1.8 ~ 2.5V @ 0.2A, 2.2 ~ 5.5V in
Manufacturer Product Page TPS82740ASIPR Specifications
EDA / CAD Models  Download from Ultra Librarian
Online Catalog MicroSip™ Series
Product Attributes
TYPE DESCRIPTION SELECT ALL
Categories Power Supplies - Board Mount
DC DC Converters
Manufacturer Texas Instruments
Series MicroSip™
Packaging Tape & Reel (TR)
Part Status Active
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 2.2V
Voltage - Input (Max) 5.5V
Voltage - Output 1 1.8 ~ 2.5V
Voltage - Output 2 -
Voltage - Output 3 -
Current - Output (Max) 200mA
Applications ITE (Commercial)
Features Remote On/Off, OCP, UVLO
Operating Temperature -40°C ~ 85°C
Efficiency 90%
Mounting Type Surface Mount
Package / Case 9-TBGA Module
Size / Dimension 0.12" L x 0.09" W x 0.04" H (3.0mm x 2.4mm x 1.0mm)
Supplier Device Package 9-USIP
Base Part Number TPS827
Environmental & Export Classifications
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 2 (1 Year)
Additional Resources
Standard Package  3,000
Other Names 296-47248-2
TPS82740ASIPR-ND
