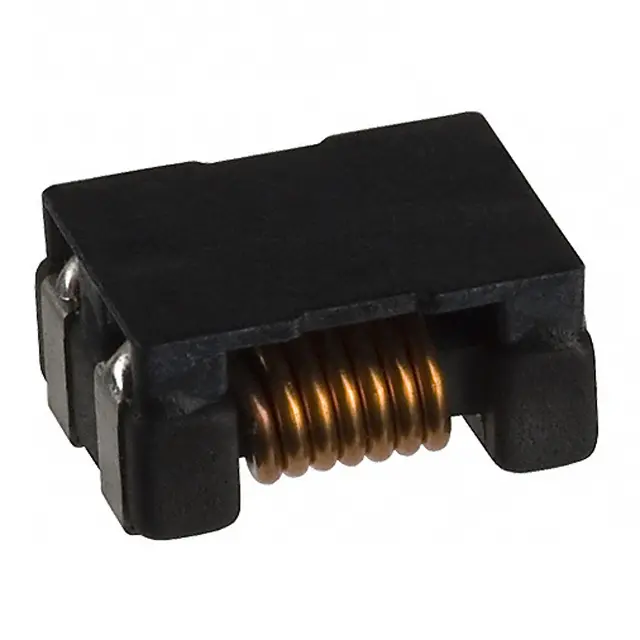

ACM9070-701-2PL-TL01

Manufacturer's number ACM9070-701-2PL-TL01
Manufacturer TDK
Detailed CMC 5A 2LN 700 OHM SMD
Detailed Description 2 Line Common Mode Choke Surface Mount 700 Ohms @ 100MHz 5A DCR 10mOhm

Documents & Media

Datasheets	ACM9070 Series
Product Training Modules	EMC Components
Mfg CAD Models	ACM9070-yyy-2PL-TL01.stp
EDA / CAD Models	Download from Ultra Librarian
Online Catalog	ACM Series

Product Attributes

TYPE	DESCRIPTION	SELECT ALL
Categories	Filters
Categories	Common Mode Chokes
Manufacturer	TDK Corporation
Series	ACM
Packaging	Tape & Reel (TR)
Part Status	Active
Filter Type	Power Line
Number of Lines	2
Impedance @ Frequency	700 Ohms @ 100MHz
Current Rating (Max)	5A
DC Resistance (DCR) (Max)	10mOhm
Voltage Rating - DC	80V
Voltage Rating - AC	-
Operating Temperature	-40°C ~ 85°C
Ratings	-
Approval Agency	-
Features	-
Mounting Type	Surface Mount
Size / Dimension	0.354" L x 0.276" W (9.00mm x 7.00mm)
Height (Max)	0.177" (4.50mm)
Package / Case	Horizontal, 4 PC Pad

Environmental & Export Classifications

RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)

Additional Resources

Standard Package	800
Other Names	445-2216-2 ACM9070-701-2PL ACM9070-701-2PL-TL ACM9070-701-2PLT ACM90707012PLTL01
