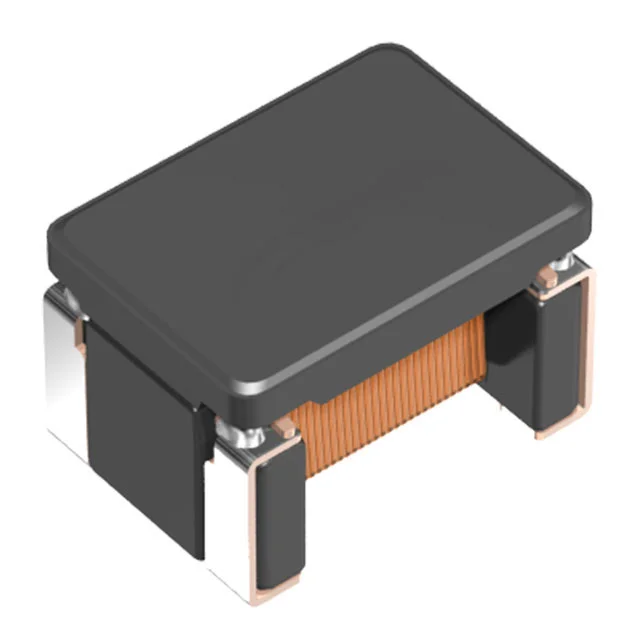

ACT45B-510-2P-TL003

Documents & Media
Documents & Media
Datasheets ACT45B Series
ACT45B Series Brief

Featured Product Ferrite Chip Common-Mode Filter for CAN-BUS System

Mfg CAD Models ACT45B-yyy-2P-TL003.stp

PCN Assembly/Origin ACT45B-yyy-2P-TL003 Production Location 01/Dec/2016

HTML Datasheet ACT45B Series, Auto Datasheet

Online Catalog ACT Series
Product Attributes
TYPE DESCRIPTION SELECT ALL
Categories Filters
Common Mode Chokes
Manufacturer TDK Corporation
Series ACT
Packaging Tape & Reel (TR)
Part Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 2.8 kOhms @ 10MHz
Inductance @ Frequency 51µH @ 100kHz
Current Rating (Max) 200mA
DC Resistance (DCR) (Max) 1Ohm
Voltage Rating - DC 50V
Voltage Rating - AC -
Operating Temperature -40°C ~ 150°C
Ratings AEC-Q200
Approval Agency -
Features -
Mounting Type Surface Mount
Size / Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Max) 0.118" (3.00mm)
Package / Case Horizontal, 4 PC Pad
Environmental & Export Classifications
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Additional Resources
Standard Package  2,500
Other Names 445-3958-2
ACT45B5102PTL003
