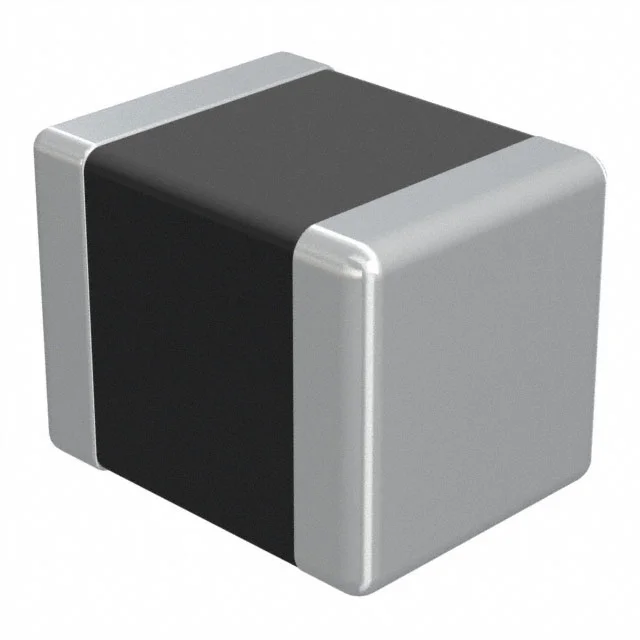

CBC3225T102KRV

Documents & Media
Datasheets Power Inductor, High Quality Catalog

EDA / CAD Models CBC3225T102KRV by SnapEDA

EDA / CAD Models  Download from Ultra Librarian
Online Catalog CB Series
Product Attributes
TYPE DESCRIPTION SELECT ALL
Categories Inductors, Coils, Chokes
Fixed Inductors
Manufacturer Taiyo Yuden
Series CB, C Type
Packaging Tape & Reel (TR)
Part Status Active
Type Wirewound
Material - Core Ferrite
Inductance 1mH
Tolerance ±10%
Current Rating (Amps) 75mA
Current - Saturation 100mA
Shielding Unshielded
DC Resistance (DCR) 16.9Ohm Max
Q @ Freq -
Frequency - Self Resonant 1.6MHz
Ratings -
Operating Temperature -40°C ~ 105°C
Inductance Frequency - Test 100kHz
Features -
Mounting Type Surface Mount
Package / Case 1210 (3225 Metric)
Supplier Device Package 1210
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.106" (2.70mm)

Environmental & Export Classifications
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Additional Resources
Standard Package  1,000
Other Names 587-6403-2
LQ CB C3225T102KRV
